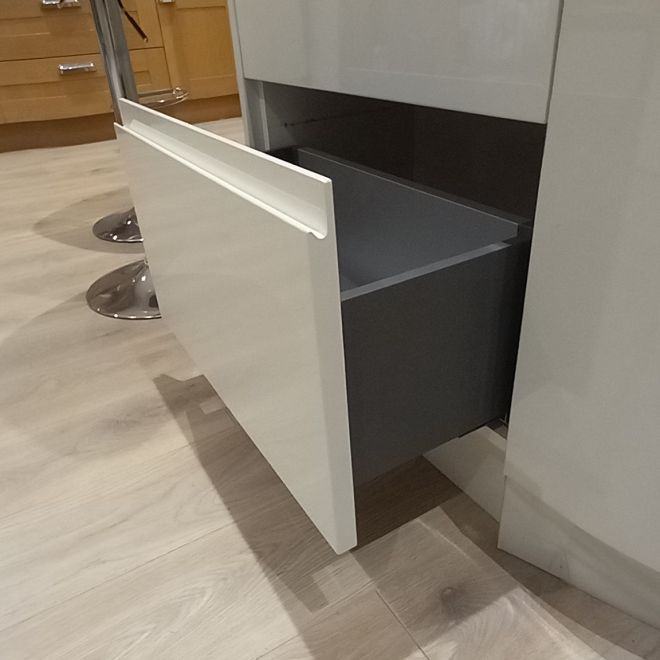

DBT Slimline Soft Close Kitchen Drawer Box. This drawer can be used as a replacement or new drawer for a unit. All fixings supplied to attach a drawer front. High quality drawer materials for a long-lasting drawer.

Load capacity 35kg

This is just the drawer box with runners. NO DRAWER FRONT SUPPLIED.

Actual height

• 88mm High: Drawer sides outer height 88mm high, height of drawer once fitted in unt including runner 110mm high.
• 120mm High: Drawer sides outer height 120mm high, height of drawer once fitted in unt including runner 142mm high.
• 171mm High: Drawer sides outer height 171mm high, height of drawer once fitted in unt including runner 192mm high.
• 203mm High: Drawer sides outer height 203mm high, height of drawer once fitted in unt including runner 225mm high.

Stated depth of drawer is the depth from front to back of the outer drawer dimension selected. make sure there is at least 10mm tolerance from the depth of your unit to allow drawer to fit without protruding from the unit.

Drawer will come flat packed & includes:

• 1x pair DBT Slimline drawer sides left & right.
• 1x pair runners with soft close built in mechanism.
• 1x drawer base 18mm thick woodchip melamine titanium colour.
• 1x drawer back 18mm thick woodchip melamine titanium colour.
• 1x pair drawer back brackets left & right to attach to drawer sides & back of drawer.
• 2x drawer front connector brackets for 88mm high &120mm high drawer or 4x drawer front connector brackets for 171mm high & 203 mm high  (to attach a drawer front).
• 2x top front bracket connection pins (for 171mm high & 203mm high only
• 1x pair rectangle drawer screw cover caps labelled DBT.
• 2x MDF strips depth stated x 50mm x 3mm (only to use if unit is 15mm).
• 1x bag of screw fixings to build and attach drawer to unit, including screws to attach a drawer front.
• 1x Fitting instructions.

Bespoke sizes available in widths only. For any enquiries please click here

It is important that you take the correct measurements to ensure you order the correct drawer boxes. Below is a detailed illustration of how to measure your unit for a prefect fit of the drawer box. This is the same for both kitchen and bedroom drawer boxes.

You can follow this easy to use guide for measuring your drawer box.

Kitchen Drawer Box Step by Step:

1. To start, to find the depth, measure the front to the back of the unit.
2. To find the width, measure the outer to outer of the unit where you want the drawer box to go.
3. To find the height, you will measure your old drawer box.


Bedroom Drawer Boxes Step by Step:

1. To start, to find the depth, measure the front to the back of the unit.
2. To find the width, measure the outer to outer of the unit where you want the drawer box to go.
3. To find the height, you will measure your old drawer box. If, you do not have a drawer box measure the internal height.
