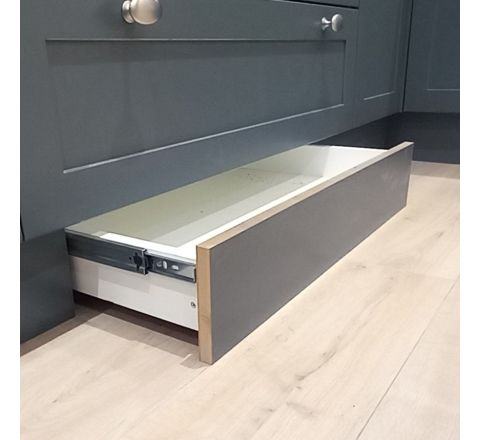

Plinth Box System

Our Plinth Box System is ready made and easy to fit!

• The PBS is ready to fit comes with all fixings and instructions. All you have to do is cut your plinth.

• Can hold up to 30kg per box.

• You can fit the PBS from inside your base unit or from under your unit.

• The PBS uses the maximum space for storage. There a total height 137mm with a 90mm height internal usable storage.

• The PBS comes in sizes set to go under unit widths these sizes include runners.

WIDTH OF YOUR UNIT OUTER WIDTH OF P.B.S OUTER HEIGHT OF P.B.S INTERNAL USABLE HEIGHT OF P.B.S INTERNAL WIDTH OF P.B.S
500mm 300mm 137mm 90mm 236mm
600mm 400mm 137mm 90mm 336mm
700mm 500mm 137mm 90mm 436mm
800mm 600mm 137mm 90mm 536mm
900mm 700mm 137mm 90mm 636mm
1000mm 800mm 137mm 90mm 736mm

• The runners attached to the drawer are push to open. The PBS is easy to open with compression & release of foot. Push to open / push to close.

• Runners are easy to disconnect

• The PBS is a drawer system which can be used for universal plinth sizes 15mm thick and up.
